Hi Nikita,
Thank you for your answer!
I try it to do first idea but when I saw how many classes dependence exist in behind I stopped.
But I do something like that:
- I created an entity SysFile:
/**
* Copyright 2023 Florin Tanasă
* *
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
* *
* http://www.apache.org/licenses/LICENSE-2.0
* *
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
**/
package com.genebank.genedatabank.entity;
import io.jmix.core.FileRef;
import io.jmix.core.annotation.DeletedBy;
import io.jmix.core.annotation.DeletedDate;
import io.jmix.core.entity.annotation.JmixGeneratedValue;
import io.jmix.core.metamodel.annotation.InstanceName;
import io.jmix.core.metamodel.annotation.JmixEntity;
import jakarta.persistence.*;
import jakarta.validation.constraints.NotNull;
import org.springframework.data.annotation.CreatedBy;
import org.springframework.data.annotation.CreatedDate;
import org.springframework.data.annotation.LastModifiedBy;
import org.springframework.data.annotation.LastModifiedDate;
import java.time.OffsetDateTime;
import java.util.Date;
import java.util.Set;
import java.util.UUID;
/**
* @author : Florin Tanasă
* @since : 03.10.2023
**/
@JmixEntity
@Table(name = "SYS_FILE")
@Entity
public class SysFile {
@JmixGeneratedValue
@Column(name = "ID", nullable = false)
@Id
private UUID id;
@Column(name = "VERSION", nullable = false)
@Version
private Integer version;
@CreatedBy
@Column(name = "CREATED_BY")
private String createdBy;
@CreatedDate
@Column(name = "CREATED_DATE")
private OffsetDateTime createdDate;
@LastModifiedBy
@Column(name = "LAST_MODIFIED_BY")
private String lastModifiedBy;
@LastModifiedDate
@Column(name = "LAST_MODIFIED_DATE")
private OffsetDateTime lastModifiedDate;
@DeletedBy
@Column(name = "DELETED_BY")
private String deletedBy;
@DeletedDate
@Column(name = "DELETED_DATE")
private OffsetDateTime deletedDate;
@InstanceName
@Column(name = "NAME", nullable = false, length = 500)
@NotNull
private String name;
@Column(name = "EXT", length = 20)
private String extension;
@Column(name = "FILE_SIZE")
private Long size;
@Column(name = "CREATE_DATE")
@Temporal(TemporalType.DATE)
private Date createDate;
@NotNull
@Lob
@Column(name = "FILE_", nullable = false)
private FileRef file;
@JoinTable(name = "PASAPORT_SYS_FILE_LINK",
joinColumns = @JoinColumn(name = "SYS_FILE_ID", referencedColumnName = "ID"),
inverseJoinColumns = @JoinColumn(name = "PASAPORT_ID", referencedColumnName = "ID"))
@ManyToMany
private Set<Pasaport> pasaports_sysfile;
public Set<Pasaport> getPasaports_sysfile() {
return pasaports_sysfile;
}
public void setPasaports_sysfile(Set<Pasaport> pasaports_sysfile) {
this.pasaports_sysfile = pasaports_sysfile;
}
public FileRef getFile() {
return file;
}
public void setFile(FileRef file) {
this.file = file;
}
/**
* @return file uploading timestamp
*/
public Date getCreateDate() {
return createDate;
}
public void setCreateDate(Date createDate) {
this.createDate = createDate;
}
/**
* @return file name including extension
*/
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
/**
* @return file extension, i.e. the part of name after the last dot
*/
public void setExtension(String extension) {
this.extension = extension;
}
public String getExtension() {
return extension;
}
/**
* @return file size in bytes
*/
public Long getSize() {
return size;
}
public void setSize(Long size) {
this.size = size;
}
public OffsetDateTime getDeletedDate() {
return deletedDate;
}
public void setDeletedDate(OffsetDateTime deletedDate) {
this.deletedDate = deletedDate;
}
public String getDeletedBy() {
return deletedBy;
}
public void setDeletedBy(String deletedBy) {
this.deletedBy = deletedBy;
}
public OffsetDateTime getLastModifiedDate() {
return lastModifiedDate;
}
public void setLastModifiedDate(OffsetDateTime lastModifiedDate) {
this.lastModifiedDate = lastModifiedDate;
}
public String getLastModifiedBy() {
return lastModifiedBy;
}
public void setLastModifiedBy(String lastModifiedBy) {
this.lastModifiedBy = lastModifiedBy;
}
public OffsetDateTime getCreatedDate() {
return createdDate;
}
public void setCreatedDate(OffsetDateTime createdDate) {
this.createdDate = createdDate;
}
public String getCreatedBy() {
return createdBy;
}
public void setCreatedBy(String createdBy) {
this.createdBy = createdBy;
}
public Integer getVersion() {
return version;
}
public void setVersion(Integer version) {
this.version = version;
}
public UUID getId() {
return id;
}
public void setId(UUID id) {
this.id = id;
}
}
- I create a relation many to many from my Pasaport entity:
...
@JoinTable(name = "PASAPORT_SYS_FILE_LINK",
joinColumns = @JoinColumn(name = "PASAPORT_ID", referencedColumnName = "ID"),
inverseJoinColumns = @JoinColumn(name = "SYS_FILE_ID", referencedColumnName = "ID"))
@ManyToMany
private List<SysFile> probeImages;
...
- In pasaport-detail-view.xml I add an dataGrid and a image components:
...
<tab id="probeImages" label="msg://probeImages.label">
<vbox id="contentHbox" width="100%" height="100%">
<hbox height="100%" width="100%">
<vbox width="100%" height="100%">
<hbox id="buttonsPanel4" classNames="buttons-panel">
<button action="probeImagesDataGrid.add"/>
<button action="probeImagesDataGrid.exclude"/>
</hbox>
<dataGrid id="probeImagesDataGrid" dataContainer="probeImagesDc" width="100%">
<actions>
<action id="add" type="list_add"/>
<action id="exclude" type="list_exclude"/>
</actions>
<columns>
<column property="version"/>
<column property="createdBy"/>
<column property="createdDate"/>
<column property="lastModifiedBy"/>
<column property="lastModifiedDate"/>
<column property="deletedBy"/>
<column property="deletedDate"/>
<column property="name"/>
<column property="extension"/>
<column property="size"/>
<column property="createDate"/>
<column property="file"/>
</columns>
</dataGrid>
</vbox>
<hbox id="probeImageWrapperLayout"
width="100%" height="100%">
<image id="imageProbe" dataContainer="probeImagesDc" property="file"/>
</hbox>
</hbox>
</vbox>
</tab>
...
- In PasaportDetailView class I add a even when I select a item in dataGrid to see image from the file:
...
@Subscribe("probeImagesDataGrid")
public void onProbeImagesDataGridItemClick(final ItemClickEvent<SysFile> event) {
FileRef fileRef = event.getItem().getFile();
if (fileRef != null) {
StreamResource streamResource = new StreamResource(fileRef.getFileName(),
() -> fileStorage.openStream(fileRef));
imageProbe.setVisible(true);
imageProbe.setSrc(streamResource);
}
else imageProbe.setVisible(false);
}
...

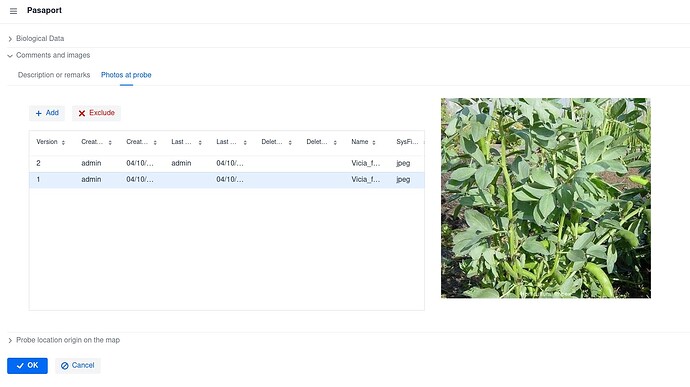

and the result is:
Now is necessary to write some code in SysFileDetailView class and the view when I upload a file to determine: extension, filename and the size of file.
I try to use this SysFile entity when I need to works with files.
Is not perfect, but is a solution for the moment.
Complete code at GitHub - florintanasa/genedatabank: GeneDataBank is an genetic plant database. · GitHub
Cheers,
