The addon map allows to use wms from external source.
But in some cases, the user, by moving or zooming, does too many requests on the WMS endpoint.

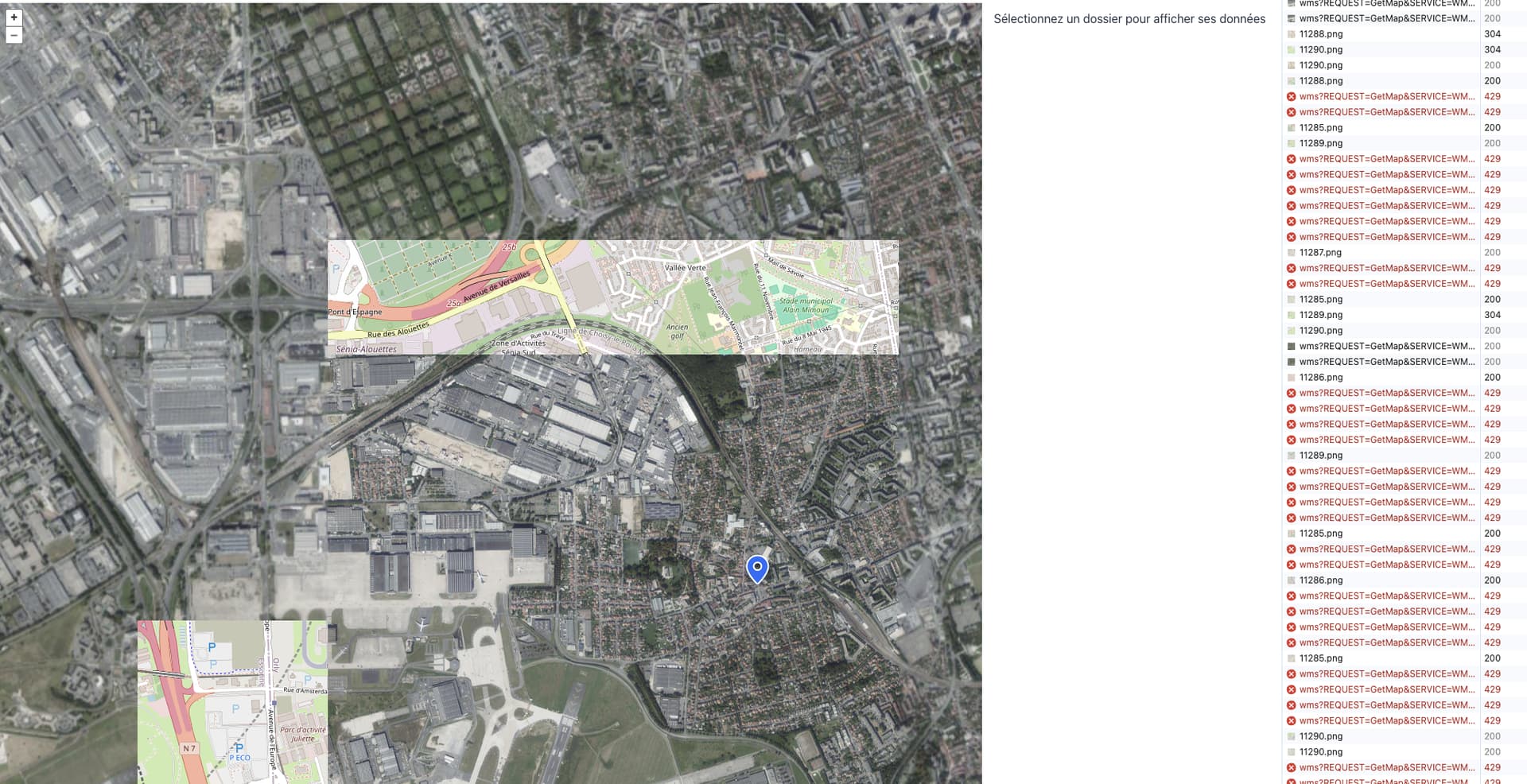

OpenLayers get a “429 Too Many Requests” and the tule is not displayed
But often the solution is just to call again after a few time.
https://openlayers.org/en/latest/apidoc/module-ol_ImageTile-ImageTile.html
How can I add this code in my app ?
Or maybe could it be added in jmix ?
Hello!
I’ve write a code that sets this function to a WMS source. Could you check that this code resolves the issue? If it works, I would create a GitHub issue to provide the ability to add and configure this function from Maps.
@Subscribe
public void onReady(ReadyEvent event) {
map.getElement().executeJs("""
setTimeout(() => {
const layers = this.olMap.getLayers().getArray();
for (const layer of layers) {
if (layer.constructor.name !== 'TileLayer' || !layer.getSource()) {
continue;
}
const source = layer.getSource();
if (source.constructor.name !== 'TileWMS') {
continue;
}
const retryCodes = [408, 429, 500, 502, 503, 504];
const retries = {};
source.setTileLoadFunction((tile, src) => {
const image = tile.getImage();
fetch(src)
.then((response) => {
if (retryCodes.includes(response.status)) {
retries[src] = (retries[src] || 0) + 1;
if (retries[src] <= 3) {
setTimeout(() => tile.load(), retries[src] * 1000);
}
return Promise.reject();
}
return response.blob();
})
.then((blob) => {
const imageUrl = URL.createObjectURL(blob);
image.src = imageUrl;
setTimeout(() => URL.revokeObjectURL(imageUrl), 5000);
})
.catch(() => tile.setState(3)); // error
});
}
} , 0);
""");
}
Thanks! I tested your snippet and it does help, but the issue still persists on our side.
The main cause seems to be that Promise.reject() flows into .catch(() => tile.setState(3)), so the tile is marked as error during the retry phase. Also, three retries is often too few under throttling.
I switched to keeping retries going and honoring Retry-After from the response headers (seconds or HTTP-date); otherwise I use a small capped backoff.
map.element.executeJs("""
setTimeout(() => {
const layers = this.olMap.getLayers().getArray();
for (const layer of layers) {
if (layer.constructor.name !== ‘TileLayer’ || !layer.getSource()) continue;
const source = layer.getSource();
if (source.constructor.name !== ‘TileWMS’) continue;
const retryCodes = [408, 429, 500, 502, 503, 504];
const MAX_BACKOFF_MS = 15000;
const BASE_BACKOFF_MS = 800;
const sleep = (ms) => new Promise(r => setTimeout(r, ms));
source.setTileLoadFunction((tile, src) => {
const image = tile.getImage();
let attempt = 0;
(async function loadForever() {
while (true) {
attempt++;
try {
const resp = await fetch(src);
if (retryCodes.includes(resp.status)) {
const ra = resp.headers.get(‘Retry-After’);
const raMs = ra
? (isNaN(+ra) ? Math.max(0, Date.parse(ra) - Date.now()) : (+ra * 1000))
: Math.min(BASE_BACKOFF_MS * attempt, MAX_BACKOFF_MS);
await sleep(raMs);
continue;
}
const blob = await resp.blob();
const url = URL.createObjectURL(blob);
image.src = url;
setTimeout(() => URL.revokeObjectURL(url), 5000);
break;
} catch (e) {
const delay = Math.min(BASE_BACKOFF_MS * attempt, MAX_BACKOFF_MS);
await sleep(delay);
}
}
})();
});
}
} , 0);
“”");
I’ve created a GitHub issue to set this function by default with ability to replace the function by custom one: Provide ability to set tile load function to UrlTile based sources · Issue #4818 · jmix-framework/jmix · GitHub
Hello,
I modified my function to add a throttling mechanism and a retry queue for WMS tiles.
Everything works correctly in development mode, but fails in production mode.
After investigating, I found that in production constructor.name is minified, so class names like TileLayer and TileWMS are replaced by minified identifiers.
What is the recommended way to detect a TileLayer with a TileWMS source in production mode? Thank you!
private fun applyWMSTileRetry(map: GeoMap, layerDelays: String): PendingJavaScriptResult? = map.element.executeJs(
“”"
setTimeout(() => {
const layers = this.olMap.getLayers().getArray();
layers.forEach(layer => {
const source = layer.getSource();
if (layer.constructor.name === ‘TileLayer’ && source && source.constructor.name === ‘TileWMS’) {
source.refresh();
// File d’attente pour les tuiles
const pendingCalls = [];
let isProcessing = false;
let lastCallTime = 0;
const layerUrl = source.getUrls()[0];
const layerDelays = JSON.parse($0);
const DELAY = layerDelays[layerUrl] || 0;
const MAX_RETRIES = 10;
async function processQueue() {
if (isProcessing || pendingCalls.length === 0) return;
isProcessing = true;
while (pendingCalls.length > 0) {
const now = performance.now();
const timeSinceLastCall = now - lastCallTime;
if (timeSinceLastCall < DELAY) {
await new Promise(resolve => setTimeout(resolve, DELAY - timeSinceLastCall));
}
lastCallTime = performance.now();
const item = pendingCalls.shift();
// Charger la tuile avec retry
const success = await loadTile(item.tile, item.src);
if (!success && item.retryCount < MAX_RETRIES) {
item.retryCount++;
pendingCalls.push(item);
}
}
isProcessing = false;
}
async function loadTile(tile, src) {
const image = tile.getImage();
try {
const resp = await fetch(src);
if (resp.ok) {
const blob = await resp.blob();
const url = URL.createObjectURL(blob);
image.src = url;
image.onload = () => {
setTimeout(() => URL.revokeObjectURL(url), 5000);
};
image.onerror = () => {
URL.revokeObjectURL(url);
};
return true; // Succès
} else {
console.log(`Failed to load tile: ${'$'}{src}, status: ${'$'}{resp.status}`);
return false; echec - réessayé
}
} catch (error) {
console.log("Error loading tile:", error);
return false; // echec - réessayé
}
}
source.setTileLoadFunction((tile, src) => {
pendingCalls.push({ tile, src, retryCount: 0 });
processQueue(); // Continuer à traiter la file d'attente
});
}
});
}, 0);
""", layerDelays
)Hello!
In this case, you can try to detect the source type indirectly. For instance, check specific TileWMS properties:
TileWMS has its own methods: getParams() and updateParams().source.getUrls().
