Cuba-JMIX migration problem: @DesignSupport annotation

Support
#1

Hi, Support Team.

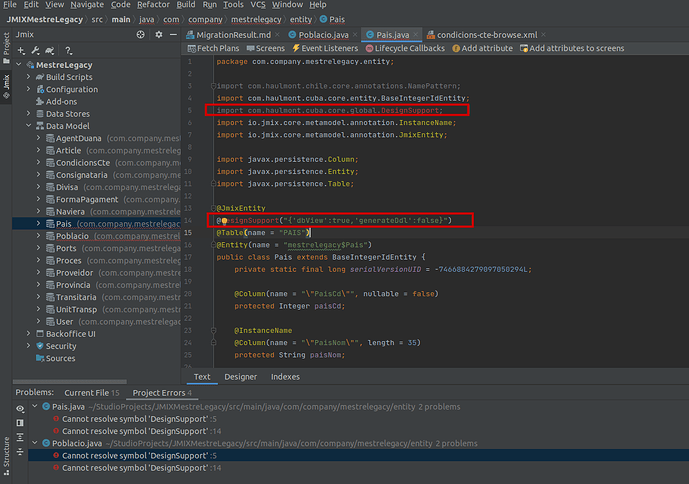

After migration process, the annotation type DesignSupport, https://files.cuba-platform.com/javadoc/cuba/7.1/com/haulmont/cuba/core/global/DesignSupport.html, causes next assemble error Cannot resolve symbol ‘DesignSupport’ (see image below):

DesignSupport

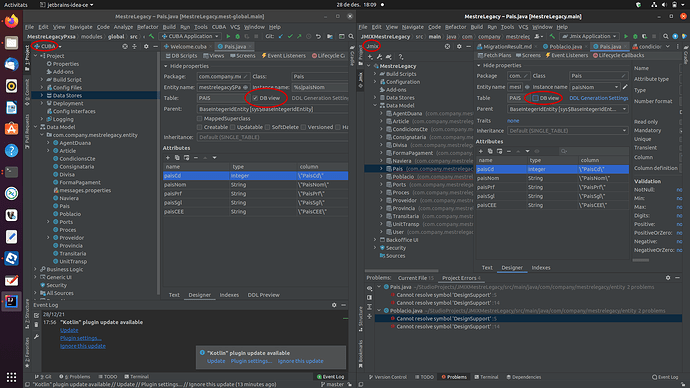

All entities in this Cuba-Platform project are DB views and, after migration, in JMIX project have lost the DB view check (see image below):

dbview

Is it possible that this problem could has relation with another occurred one during the migration process because it didn’t recognize the DBMS type? https://forum.jmix.io/t/sql-server-2005-is-not-supported/899/2

What could be the solution? Manually confirm the DB View check in designer view?

For more information about the origin of the use of this @DesignSupport annotation in this Cuba-Platform project: https://forum.cuba-platform.com/t/error-studio-v-11-3-trying-to-create-foreign-keys-over-database-views/10245

Thanks in advance

#2

Hi,
Instead of the @DesignSupport annotation you should use io.jmix.data.DdlGeneration or io.jmix.data.DbView annotations in Jmix.

Entity designer writes them them to the source code - you can check how they will look like if you create new entity and change “DB View” or “DDL Generation settings” settings in the entity designer.

#3

Thanks, Alexander. I’ll try your advice and I’ll report the result.

Best regards
