In Cuba Studio, there is a tab in the Entity Designer to view the generated DDL script to create the entity in the database. But in Jmix Studio, I couldn’t find such feature.
How can I get Jmix Studio to create the DDL scripts for some new entities that I defined in the data model ? I want to run it manually on my Oracle database without using the Liquibase option.
CK
Hello,

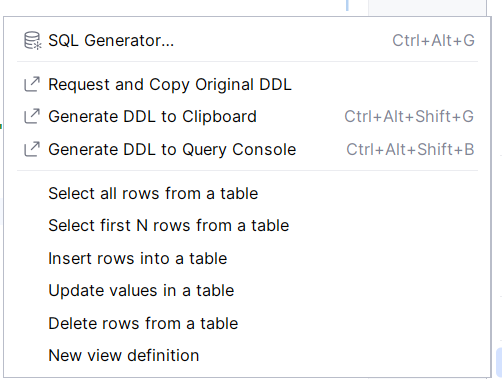

If you have IntelliJ Ultimate, it has built-in database tools; maybe there is a plugin for the community version, I’m not sure.
You can also fetch it programmatically. This service code is part of the upcoming blog, and it’s used to create SQL DDL. Use this method:
public String getTableDDLAsString(String tableName)
Put that into the skeleton application and call it with a string parameter of the table name in the database.
package com.company.aiwizard.service;
import org.springframework.stereotype.Service;
import javax.sql.DataSource;
import java.sql.Connection;
import java.sql.DatabaseMetaData;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.*;
/**
* Service for extracting complete DDL (Data Definition Language) definitions from database tables.
* Uses JDBC DatabaseMetaData to introspect table structure including columns, constraints, and indexes.
*
* Provides output in three formats:
* - Structured record objects (TableDDLDefinition)
* - SQL CREATE TABLE statement
* - Human-readable metadata summary
*
* Useful for schema documentation, migration tools, AI-powered database analysis,
* or reverse-engineering database structures.
*/
@Service("aiwizard_AIWizardTableDDLDefinitionService") // Bean name with module prefix
public class AIWizardTableDDLDefinitionService {
private final DataSource dataSource; // JDBC connection pool
/**
* Constructor injection for the configured DataSource.
*/
public AIWizardTableDDLDefinitionService(DataSource dataSource) {
this.dataSource = dataSource;
}
/**
* Returns complete DDL definition for a table as a structured object.
* Includes columns, primary key, foreign keys, indexes, and unique constraints.
*
* @param tableName table name (case-insensitive search)
* @return TableDDLDefinition containing all structural metadata
* @throws IllegalArgumentException if table is not found
* @throws RuntimeException if database access fails
*/
public TableDDLDefinition getTableDDLDefinition(String tableName) {
try (Connection connection = dataSource.getConnection()) {
DatabaseMetaData metaData = connection.getMetaData();
String catalog = connection.getCatalog(); // Database name (MySQL) or null (PostgreSQL)
String schema = connection.getSchema(); // Schema name (e.g., "public" in PostgreSQL)
// Find actual table name with case-insensitive search
String actualTableName = findActualTableName(metaData, catalog, schema, tableName);
if (actualTableName == null) {
throw new IllegalArgumentException("Table not found: " + tableName);
}
// Extract all metadata components
List<ColumnDefinition> columns = getColumns(metaData, catalog, schema, actualTableName);
PrimaryKeyDefinition primaryKey = getPrimaryKey(metaData, catalog, schema, actualTableName);
List<ForeignKeyDefinition> foreignKeys = getForeignKeys(metaData, catalog, schema, actualTableName);
List<IndexDefinition> indexes = getIndexes(metaData, catalog, schema, actualTableName);
List<UniqueConstraintDefinition> uniqueConstraints = getUniqueConstraints(metaData, catalog, schema, actualTableName);
return new TableDDLDefinition(
catalog,
schema,
actualTableName,
columns,
primaryKey,
foreignKeys,
indexes,
uniqueConstraints
);
} catch (SQLException e) {
throw new RuntimeException("Failed to retrieve DDL for table: " + tableName, e);
}
}
/**
* Returns table DDL as a SQL CREATE TABLE statement.
* Generates valid SQL syntax including all constraints and indexes.
*
* @param tableName table name
* @return SQL CREATE TABLE statement with constraints and CREATE INDEX statements
*/
public String getTableDDLAsString(String tableName) {
TableDDLDefinition def = getTableDDLDefinition(tableName);
StringBuilder sb = new StringBuilder();
// === CREATE TABLE header ===
sb.append("CREATE TABLE ");
if (def.schema() != null && !def.schema().isEmpty()) {
sb.append(def.schema()).append(".");
}
sb.append(def.tableName()).append(" (\n");
// Collect all column and constraint definitions
List<String> columnDefs = new ArrayList<>();
// --- Column definitions ---
for (ColumnDefinition col : def.columns()) {
StringBuilder colDef = new StringBuilder();
colDef.append(" ").append(col.columnName()).append(" ").append(col.typeName());
// Add size/precision for types that need it (VARCHAR, NUMERIC, etc.)
if (col.columnSize() != null && needsSize(col.typeName())) {
if (col.decimalDigits() != null && col.decimalDigits() > 0) {
// NUMERIC(10, 2) format for decimals
colDef.append("(").append(col.columnSize()).append(", ").append(col.decimalDigits()).append(")");
} else {
// VARCHAR(255) format
colDef.append("(").append(col.columnSize()).append(")");
}
}
// NOT NULL constraint
if (!col.nullable()) {
colDef.append(" NOT NULL");
}
// Default value
if (col.defaultValue() != null && !col.defaultValue().isEmpty()) {
colDef.append(" DEFAULT ").append(col.defaultValue());
}
// Auto-increment (PostgreSQL IDENTITY syntax)
if (col.autoIncrement()) {
colDef.append(" GENERATED ALWAYS AS IDENTITY");
}
columnDefs.add(colDef.toString());
}
// --- Primary key constraint ---
if (def.primaryKey() != null && !def.primaryKey().columns().isEmpty()) {
StringBuilder pkDef = new StringBuilder();
pkDef.append(" CONSTRAINT ").append(def.primaryKey().constraintName());
pkDef.append(" PRIMARY KEY (");
pkDef.append(String.join(", ", def.primaryKey().columns()));
pkDef.append(")");
columnDefs.add(pkDef.toString());
}
// --- Unique constraints ---
for (UniqueConstraintDefinition uc : def.uniqueConstraints()) {
StringBuilder ucDef = new StringBuilder();
ucDef.append(" CONSTRAINT ").append(uc.constraintName());
ucDef.append(" UNIQUE (");
ucDef.append(String.join(", ", uc.columns()));
ucDef.append(")");
columnDefs.add(ucDef.toString());
}
// --- Foreign key constraints ---
for (ForeignKeyDefinition fk : def.foreignKeys()) {
StringBuilder fkDef = new StringBuilder();
fkDef.append(" CONSTRAINT ").append(fk.constraintName());
fkDef.append(" FOREIGN KEY (").append(fk.fkColumnName()).append(")");
fkDef.append(" REFERENCES ");
// Include schema if present
if (fk.pkTableSchema() != null && !fk.pkTableSchema().isEmpty()) {
fkDef.append(fk.pkTableSchema()).append(".");
}
fkDef.append(fk.pkTableName()).append("(").append(fk.pkColumnName()).append(")");
// Referential actions (only if not default NO ACTION)
if (fk.deleteRule() != null && !fk.deleteRule().equals("NO ACTION")) {
fkDef.append(" ON DELETE ").append(fk.deleteRule());
}
if (fk.updateRule() != null && !fk.updateRule().equals("NO ACTION")) {
fkDef.append(" ON UPDATE ").append(fk.updateRule());
}
columnDefs.add(fkDef.toString());
}
// Join all definitions with commas
sb.append(String.join(",\n", columnDefs));
sb.append("\n);\n");
// === CREATE INDEX statements (separate from table) ===
for (IndexDefinition idx : def.indexes()) {
// Skip unique indexes (already handled as constraints) and primary key indexes
if (!idx.unique() && !idx.indexName().toLowerCase().contains("pkey")) {
sb.append("\nCREATE INDEX ").append(idx.indexName());
sb.append(" ON ");
if (def.schema() != null && !def.schema().isEmpty()) {
sb.append(def.schema()).append(".");
}
sb.append(def.tableName());
sb.append(" (").append(String.join(", ", idx.columns())).append(");");
}
}
return sb.toString();
}
/**
* Returns table metadata as a human-readable formatted string.
* Useful for debugging, documentation, or display in UI/console.
*
* @param tableName table name
* @return formatted string with all table metadata
*/
public String getTableMetadataAsString(String tableName) {
TableDDLDefinition def = getTableDDLDefinition(tableName);
StringBuilder sb = new StringBuilder();
// === Header section ===
sb.append("=== Table Metadata ===\n");
sb.append("Catalog: ").append(def.catalog()).append("\n");
sb.append("Schema: ").append(def.schema()).append("\n");
sb.append("Table: ").append(def.tableName()).append("\n");
// === Columns section ===
sb.append("\n--- Columns (").append(def.columns().size()).append(") ---\n");
for (ColumnDefinition col : def.columns()) {
sb.append("\n").append(col.columnName()).append(":\n");
// Type with size/precision
sb.append(" Type: ").append(col.typeName());
if (col.columnSize() != null) {
sb.append("(").append(col.columnSize());
if (col.decimalDigits() != null && col.decimalDigits() > 0) {
sb.append(", ").append(col.decimalDigits());
}
sb.append(")");
}
sb.append("\n");
sb.append(" Nullable: ").append(col.nullable()).append("\n");
if (col.defaultValue() != null && !col.defaultValue().isEmpty()) {
sb.append(" Default: ").append(col.defaultValue()).append("\n");
}
if (col.autoIncrement()) {
sb.append(" Auto Increment: true\n");
}
sb.append(" Ordinal Position: ").append(col.ordinalPosition()).append("\n");
if (col.remarks() != null && !col.remarks().isEmpty()) {
sb.append(" Remarks: ").append(col.remarks()).append("\n");
}
}
// === Primary key section ===
if (def.primaryKey() != null) {
sb.append("\n--- Primary Key ---\n");
sb.append("Constraint: ").append(def.primaryKey().constraintName()).append("\n");
sb.append("Columns: ").append(String.join(", ", def.primaryKey().columns())).append("\n");
}
// === Foreign keys section ===
if (!def.foreignKeys().isEmpty()) {
sb.append("\n--- Foreign Keys (").append(def.foreignKeys().size()).append(") ---\n");
for (ForeignKeyDefinition fk : def.foreignKeys()) {
sb.append("\n").append(fk.constraintName()).append(":\n");
sb.append(" Column: ").append(fk.fkColumnName()).append("\n");
sb.append(" References: ").append(fk.pkTableName()).append(".").append(fk.pkColumnName()).append("\n");
sb.append(" On Delete: ").append(fk.deleteRule()).append("\n");
sb.append(" On Update: ").append(fk.updateRule()).append("\n");
}
}
// === Unique constraints section ===
if (!def.uniqueConstraints().isEmpty()) {
sb.append("\n--- Unique Constraints (").append(def.uniqueConstraints().size()).append(") ---\n");
for (UniqueConstraintDefinition uc : def.uniqueConstraints()) {
sb.append(uc.constraintName()).append(": (");
sb.append(String.join(", ", uc.columns())).append(")\n");
}
}
// === Indexes section ===
if (!def.indexes().isEmpty()) {
sb.append("\n--- Indexes (").append(def.indexes().size()).append(") ---\n");
for (IndexDefinition idx : def.indexes()) {
sb.append(idx.indexName()).append(":\n");
sb.append(" Columns: ").append(String.join(", ", idx.columns())).append("\n");
sb.append(" Unique: ").append(idx.unique()).append("\n");
}
}
return sb.toString();
}
/**
* Finds actual table name with case-insensitive search.
* Tries exact match, then uppercase, then lowercase.
* Handles databases with different case sensitivity (PostgreSQL vs MySQL vs Oracle).
*/
private String findActualTableName(DatabaseMetaData metaData, String catalog, String schema, String tableName) throws SQLException {
// Try exact match first
try (ResultSet rs = metaData.getTables(catalog, schema, tableName, new String[]{"TABLE"})) {
if (rs.next()) {
return rs.getString("TABLE_NAME");
}
}
// Try uppercase (Oracle, H2 default)
try (ResultSet rs = metaData.getTables(catalog, schema, tableName.toUpperCase(), new String[]{"TABLE"})) {
if (rs.next()) {
return rs.getString("TABLE_NAME");
}
}
// Try lowercase (PostgreSQL default)
try (ResultSet rs = metaData.getTables(catalog, schema, tableName.toLowerCase(), new String[]{"TABLE"})) {
if (rs.next()) {
return rs.getString("TABLE_NAME");
}
}
return null; // Table not found
}
/**
* Extracts column definitions from table metadata.
* Returns columns sorted by ordinal position (as defined in table).
*/
private List<ColumnDefinition> getColumns(DatabaseMetaData metaData, String catalog, String schema, String tableName) throws SQLException {
List<ColumnDefinition> columns = new ArrayList<>();
// Query all columns (% = wildcard for column name)
try (ResultSet rs = metaData.getColumns(catalog, schema, tableName, "%")) {
while (rs.next()) {
columns.add(new ColumnDefinition(
rs.getString("COLUMN_NAME"),
rs.getString("TYPE_NAME"), // SQL type name (VARCHAR, INTEGER, etc.)
rs.getInt("DATA_TYPE"), // java.sql.Types constant
getIntOrNull(rs, "COLUMN_SIZE"), // Length/precision
getIntOrNull(rs, "DECIMAL_DIGITS"), // Scale for decimals
rs.getInt("NULLABLE") == DatabaseMetaData.columnNullable,
rs.getString("COLUMN_DEF"), // Default value expression
rs.getInt("ORDINAL_POSITION"), // Column order in table
rs.getString("REMARKS"), // Column comment
"YES".equalsIgnoreCase(rs.getString("IS_AUTOINCREMENT"))
));
}
}
// Sort by ordinal position to match table definition order
columns.sort(Comparator.comparing(ColumnDefinition::ordinalPosition));
return columns;
}
/**
* Extracts primary key definition including composite keys.
* Returns null if table has no primary key.
*/
private PrimaryKeyDefinition getPrimaryKey(DatabaseMetaData metaData, String catalog, String schema, String tableName) throws SQLException {
List<String> columns = new ArrayList<>();
String pkName = null;
try (ResultSet rs = metaData.getPrimaryKeys(catalog, schema, tableName)) {
// Use TreeMap to maintain column order for composite keys
Map<Integer, String> orderedColumns = new TreeMap<>();
while (rs.next()) {
pkName = rs.getString("PK_NAME");
int keySeq = rs.getInt("KEY_SEQ"); // Position in composite key (1-based)
String columnName = rs.getString("COLUMN_NAME");
orderedColumns.put(keySeq, columnName);
}
columns.addAll(orderedColumns.values());
}
if (columns.isEmpty()) {
return null;
}
return new PrimaryKeyDefinition(pkName, columns);
}
/**
* Extracts foreign key definitions (imported keys = FK columns in this table).
*/
private List<ForeignKeyDefinition> getForeignKeys(DatabaseMetaData metaData, String catalog, String schema, String tableName) throws SQLException {
List<ForeignKeyDefinition> foreignKeys = new ArrayList<>();
// getImportedKeys returns FKs where this table is the child (referencing) table
try (ResultSet rs = metaData.getImportedKeys(catalog, schema, tableName)) {
while (rs.next()) {
foreignKeys.add(new ForeignKeyDefinition(
rs.getString("FK_NAME"), // Constraint name
rs.getString("FKCOLUMN_NAME"), // Column in this table
rs.getString("PKTABLE_SCHEM"), // Referenced table's schema
rs.getString("PKTABLE_NAME"), // Referenced table
rs.getString("PKCOLUMN_NAME"), // Referenced column
mapReferentialAction(rs.getInt("DELETE_RULE")), // ON DELETE action
mapReferentialAction(rs.getInt("UPDATE_RULE")) // ON UPDATE action
));
}
}
return foreignKeys;
}
/**
* Extracts all index definitions including composite indexes.
* Uses LinkedHashMap to preserve index discovery order.
*/
private List<IndexDefinition> getIndexes(DatabaseMetaData metaData, String catalog, String schema, String tableName) throws SQLException {
Map<String, IndexDefinition> indexMap = new LinkedHashMap<>();
// Parameters: unique=false (get all indexes), approximate=false (accurate stats)
try (ResultSet rs = metaData.getIndexInfo(catalog, schema, tableName, false, false)) {
while (rs.next()) {
String indexName = rs.getString("INDEX_NAME");
if (indexName == null) {
continue; // Skip table statistics rows
}
String columnName = rs.getString("COLUMN_NAME");
boolean unique = !rs.getBoolean("NON_UNIQUE"); // Note: inverted logic
String ascDesc = rs.getString("ASC_OR_DESC"); // A=ascending, D=descending, null=unsorted
// Handle composite indexes (multiple columns per index)
IndexDefinition existing = indexMap.get(indexName);
if (existing != null) {
existing.columns().add(columnName); // Add column to existing index
} else {
List<String> columns = new ArrayList<>();
columns.add(columnName);
indexMap.put(indexName, new IndexDefinition(indexName, columns, unique, ascDesc));
}
}
}
return new ArrayList<>(indexMap.values());
}
/**
* Extracts unique constraints (excluding primary key).
* Derived from unique indexes, filtering out PK-related indexes.
*/
private List<UniqueConstraintDefinition> getUniqueConstraints(DatabaseMetaData metaData, String catalog, String schema, String tableName) throws SQLException {
Map<String, UniqueConstraintDefinition> constraintMap = new LinkedHashMap<>();
// Query unique indexes only
try (ResultSet rs = metaData.getIndexInfo(catalog, schema, tableName, true, false)) {
while (rs.next()) {
String indexName = rs.getString("INDEX_NAME");
if (indexName == null) {
continue;
}
// Skip primary key indexes (naming convention varies by database)
if (indexName.toLowerCase().contains("pkey") || indexName.toLowerCase().contains("pk_")) {
continue;
}
String columnName = rs.getString("COLUMN_NAME");
// Handle composite unique constraints
UniqueConstraintDefinition existing = constraintMap.get(indexName);
if (existing != null) {
existing.columns().add(columnName);
} else {
List<String> columns = new ArrayList<>();
columns.add(columnName);
constraintMap.put(indexName, new UniqueConstraintDefinition(indexName, columns));
}
}
}
return new ArrayList<>(constraintMap.values());
}
/**
* Maps JDBC referential action constants to SQL keywords.
*/
private String mapReferentialAction(int action) {
return switch (action) {
case DatabaseMetaData.importedKeyCascade -> "CASCADE";
case DatabaseMetaData.importedKeySetNull -> "SET NULL";
case DatabaseMetaData.importedKeySetDefault -> "SET DEFAULT";
case DatabaseMetaData.importedKeyRestrict -> "RESTRICT";
default -> "NO ACTION";
};
}
/**
* Determines if a SQL type needs size specification in DDL.
* Returns true for character types, numeric types with precision, and binary types.
*/
private boolean needsSize(String typeName) {
String upper = typeName.toUpperCase();
return upper.contains("CHAR") || upper.contains("VARCHAR") ||
upper.contains("NUMERIC") || upper.contains("DECIMAL") ||
upper.contains("BINARY") || upper.contains("VARBINARY");
}
/**
* Safely reads integer column, returning null if database value was NULL.
*/
private Integer getIntOrNull(ResultSet rs, String columnName) throws SQLException {
int value = rs.getInt(columnName);
return rs.wasNull() ? null : value;
}
// ==================== Record Definitions ====================
/**
* Complete table DDL definition with all structural metadata.
*/
public record TableDDLDefinition(
String catalog, // Database/catalog name
String schema, // Schema name
String tableName, // Table name
List<ColumnDefinition> columns, // All column definitions
PrimaryKeyDefinition primaryKey, // Primary key (nullable)
List<ForeignKeyDefinition> foreignKeys, // Foreign key constraints
List<IndexDefinition> indexes, // All indexes
List<UniqueConstraintDefinition> uniqueConstraints // Unique constraints (excl. PK)
) {}
/**
* Column metadata including type, constraints, and default value.
*/
public record ColumnDefinition(
String columnName, // Column name
String typeName, // SQL type name (VARCHAR, INTEGER, etc.)
int dataType, // java.sql.Types constant
Integer columnSize, // Length (chars) or precision (numbers)
Integer decimalDigits, // Scale for decimal types
boolean nullable, // Allows NULL?
String defaultValue, // Default value expression
int ordinalPosition, // Position in table (1-based)
String remarks, // Column comment
boolean autoIncrement // Auto-generated value?
) {}
/**
* Primary key constraint metadata.
*/
public record PrimaryKeyDefinition(
String constraintName, // Constraint name
List<String> columns // Column(s) in key order
) {}
/**
* Foreign key constraint metadata.
*/
public record ForeignKeyDefinition(
String constraintName, // FK constraint name
String fkColumnName, // Column in this table
String pkTableSchema, // Referenced table's schema
String pkTableName, // Referenced table name
String pkColumnName, // Referenced column name
String deleteRule, // ON DELETE action (CASCADE, SET NULL, etc.)
String updateRule // ON UPDATE action
) {}
/**
* Index metadata (may be unique or non-unique).
*/
public record IndexDefinition(
String indexName, // Index name
List<String> columns, // Indexed columns in order
boolean unique, // Is unique index?
String sortOrder // A=ascending, D=descending
) {}
/**
* Unique constraint metadata (excluding primary key).
*/
public record UniqueConstraintDefinition(
String constraintName, // Constraint name
List<String> columns // Columns in constraint
) {}
}
Kind regards,
Mladen
Forgot to mention, your database or its management application probably support DDL creation.
Example for PostrgeSQL:
pg_dump mydb -t mytable --schema-only
